Current position:HOME  >  Product Center  >  Floodgate valve  >  Wedge type floodgate valve of dark pole
Product introduction:

大田消防专用信号弹性座封闸阀


First, detailed materials of the product [the wedge type floodgate valve of dark pole ]:

Name of product: Wedge type floodgate valve of dark pole

Characteristic of the products: This valve is extensively suitable for such trades as petroleum , chemical industry , pharmacy , electricity ,etc., make and open and close using on the steam of the nominal pressure ≤ 1.0MPa , the pipelines of water , oils medium. The dark pole has wedge type valve price of floodgate, the wedge type floodgate valve producer of dark pole, the wedge type floodgate valve of dark pole is offered.

Second, performance norm:

Type

Nominal pressure ( MPa)

Test pressure ( MPa)

Working temperature ( Degrees Centigrade)

Suitable medium

Intensity ( Water)

Seal ( Water)

Z45T-10

1.0

1.5

1.1

≤ 120

Steam , water

Z45W-10

≤ 100

Oil , coal gas

Second, major part material :

Part name

Material

Z45T-110

Z45W-10

Valve body , valve covering

Gray casting iron

Gray casting iron

Valve board

Gray casting iron + yellow steel

Gray casting iron

Valve stem

Carbon steel

Carbon steel

Handwheel

Gray casting iron

Gray casting iron

Valve stem nut

Blue and green steel

Blue and green steel

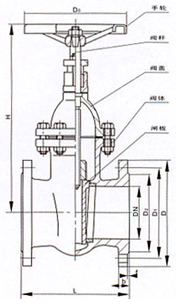

Third , the wedge type external dimension of floodgate valve of the dark pole and size of connecting:

Type

Nominal open DN directly ( mm)

Size

Weight ( kg)

L

D

D1

D2

b-f

Z- Φ d

H

Do

Z45T-10
Z45W-10

40

165

145

110

85

18-3

4-18

240

140

16.5

50

178

160

125

100

20-3

4-18

295

160

20

65

190

180

145

120

20-3

4-18

320

160

25

80

203

195

160

135

22-3

4-18

350

200

33

100

229

215

180

155

22-3

8-18

390

200

44

125

250

250

210

185

24-3

8-18

440

240

60

150

270

280

240

210

24-3

8-23

490

240

98.5

200

292

330

295

265

26-3

8-23

620

320

135

250

330

390

350

320

28-3

12-23

680

320

185

300

356

440

400

368

28-3

12-23

880

400

-

350

381

500

460

428

30-3

16-23

888

400

-

400

406

565

515

482

32-3

16-25

-

500

-

450

432

615

565

532

32-3

20-25

-

500

-

500

457

670

620

585

34-3

20-25

-

500

-
